Aalborg MPF Multi Fuel

The Aalborg MPF (Marine Para Flow) burner for dual-fuel firing of MDO, HFO, crude oil and fuel gas comes in roof orwall-fired designs. A low emission marine burner variety, Aalborg MPF-LE (LE for low emissions), is also available.

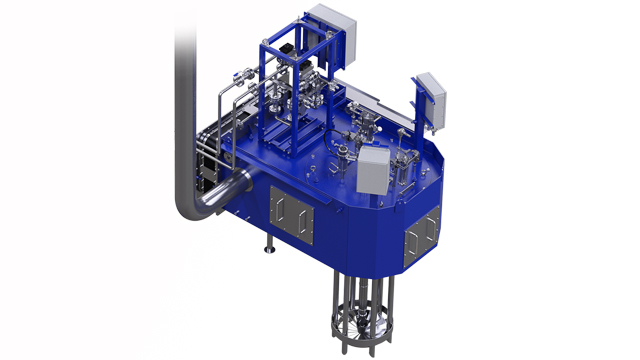

Aalborg MPF 640x360 large.jpg
  • Related services

Nuestra red especial de servicios a nivel global le permite encontrar tanto repuestos recambio como asistencia por parte de un experto, en cuanto lo necesite y donde lo necesite. Al garantizar mayores tiempos de actividad, mayor disponibilidad y optimización, podrá obtener la tranquilidad que tanto merece y maximizar su retorno de la inversión. Podemos acordar con usted un acuerdo de rendimiento que integre nuestros servicios para aquellas operaciones predecibles y sin preocupaciones.

Más información sobre nuestra oferta de servicios

How can we help you?Contacte con nosotros si tiene cualquier duda o pregunta.

Contacte con nosotros

The Aalborg MPF (Marine Para Flow) burner comes in roof or wall-fired designs, capable of handling MDO, HFO, crude oil or fuel gas in single fuel or simultaneous firing operation.

The burner assembly is provided as a complete module, incorporating dual redundant flame scanners, gas ring manifold and gas canes, oil gun and air register with all electrical components pre-cabled to the front plate-mounted junction box.In addition, all instrument air users are pre-tubed (SS) to a common manifold and regulator, also mounted on the frontplate.

Application specific designOur burner designs are application and project specific. They are based on proven designs combined with advanced com-bustion tuning via computational analysis.

Capacity range: 5 – 46 MW

Combustion

The burner assembly is provided as a complete module, incorporating dual redundant flame scanners, internal gasring, oil gun and igniter with all electrical components pre-cabled to the front plate mounted SS junction box.

In addition, all instrument air users are pre-tubed (SS) to a common manifold, also mounted on the burner.

  • Wide turndown range
  • Low excess air operation
  • Low atomizing steam consumption
  • Retractable oil gun
  • Direct spark ignition or oil pilot
  • Capability of burning all grades of gaseous and liquid fuel oils
  • Output of up to 46 MW
  • Low maintenance
  • No/low particulate emissions
  • Ambient or preheated combustion air
  • Retractable air register (multiple burners)

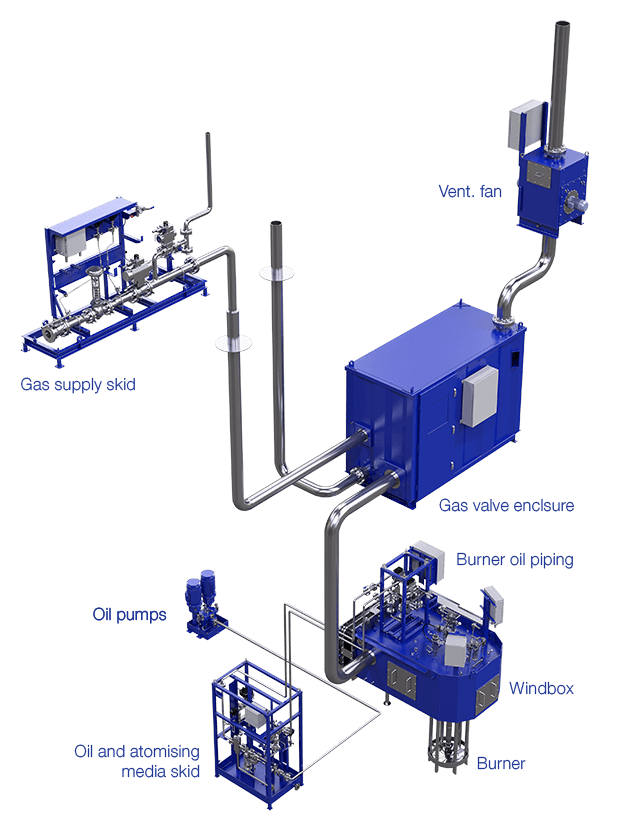

How it works

Dual fuelburner with text web.png
Request information

Request information for Aalborg MPF Multi Fuel
