Aalborg H/HW

La caldera H/HW de Aalborg está diseñada para la recuperación del calor residual después de los motores de gas o diesel. Ambas calderas tienen una construcción sencilla y muy fiable.

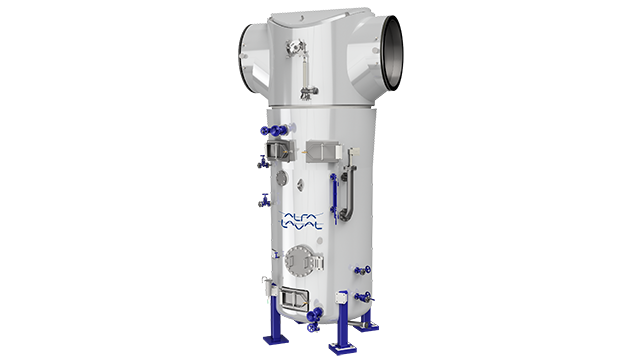

H boiler 640x360

Aalborg H/HW boilers are available with vertical or horizontal layouts. The Aalborg H, which is used for steam generation, has an integrated steam space and employs natural circulation.

The Aalborg HW, which is used in hot water applications, has flow-optimizing baffl e plates and employs forced circulation. Both models have a simple and reliable construction comprised of bare smoke tubes, which are welded to tube plates at both ends of the shell.



Design data

  • Engine output:No limits, depending on engine
  • Engine fuel type: Light oil, liquid biofuel, heavy fuel oil, natural gas
  • Exhaust gas inlet temperature:< 530 °C
  • Exhaust gas flow: No limits
  • Typical operating pressure:< 20 bar(g)
  • Steam temperature: Saturated
  • Typical pinch point: > 20 ºC



Cómo funciona

Información general del producto

  • Instalación horizontal o vertical
  • Excelente resistencia a vibraciones
  • Salida estable gracias al gran volumen de agua
  • Ideal para calentamiento con HFO o aplicaciones con demandas bajas a moderadas de vapor
  • Sistema integrado de derivación de gases de escape para modulación de capacidad
  • Válvulas e instrumentación con rango seleccionable de automatización
  • Apto para calefacción distrital mediante agua caliente
