Válvulas de cierre

Las válvulas de cierre de Alfa Laval son válvulas higiénicas de tres vías que desvían el flujo de productos altamente viscosos, que contienen partículas de gran tamaño o que exigen minimizar al máximo las pérdidas de presión. Compactas, fiables y resistentes a los golpes de ariete, estas válvulas pueden funcionar en modo manual o automático (neumático). Están diseñadas para su uso en los sectores alimentario, químico, farmacéutico y otros sectores con elevados requisitos de higiene

Koltek shutter valve

Válvulas de tres vías en línea, sencillas y directas, que desvían fácilmente fluidos muy viscosos, que contienen partículas

  • La baja restricción de flujo permite que los líquidos viscosos y los que contienen partículas fluyan fácilmente a través de las válvulas
  • Su diseño sencillo, intuitivo e higiénico se integra fácilmente en diversos conductos y sistemas
  • Larga duración, fácil manejo y mantenimiento gracias al reducido número de componentes de calidad y piezas móviles
  • Enrutamiento sencillo de productos en tres direcciones cuando se utiliza con manetas manuales o con actuadores neumáticos flexibles y fáciles
  • Válvulas de tres vías compactas, prácticas y que ahorran espacio

Aumente el tiempo de actividad utilizando la válvula de tres vías de Alfa Laval para canalizar sus líquidos viscosos y líquidos que contienen partículas con pérdidas de presión mínimas, de forma fácil y cómoda.

Diseñadas para facilitar el tendido de tuberías, garantizar un alto nivel de higiene, requerir un mantenimiento mínimo y ofrecer un funcionamiento seguro, estas válvulas de compuerta satisfacen las exigencias de un paso fluido a través de los sistemas de procesamiento higiénicos, así como de una limpieza in situ (CIP) sencilla, cómoda y exhaustiva.

.

How does shutter valves work?

Alfa Laval shutter valves, including three way valves, consist of rigid bodies with an internal cylindrical bore, a PTFE shutter and three ports for pipe connection. The two lids have guide rings for an internal shaft, which supports and positions the shutter, forming the core of the shutter valve mechanism.

The shutter valves are operated either manually by means of stainless-steel handles or automatically by means of compressed air using pneumatic actuators. A spring system presses the shutter against the inside cylindrical surface of the valve body thereby ensuring complete tightness.

Manually operated valves, such as Alfa Laval 3 way valve, can be fitted with indication units installed laterally. The valve actuator is available in two versions: a single-acting actuator or a double-acting actuator. The actuator consists of a system of cylinders and one or two main pistons interconnected with a toothed bar, which interacts with a gear wheel on the valve shaft.

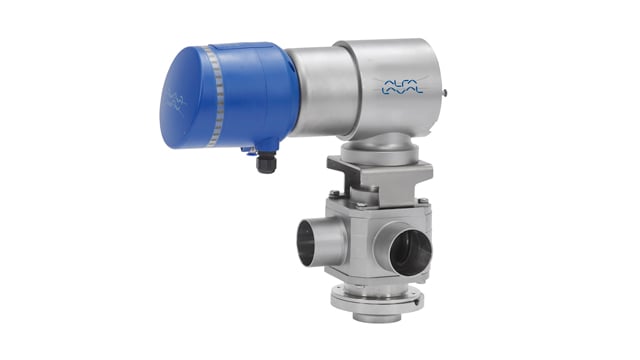

The pneumatic actuator of automated valves can be fitted with an Alfa Laval ThinkTop® V50 or V70 control unit, or an Alfa Laval indication unit installed laterally for remote indication of the valve position.



.
