Válvula de bola sanitaria SBV

Sanitary ball valves feature a full-bore design that enables full fluid flow with minimal pressure drop, making them ideal for handling viscous liquids or liquids containing particles in the food, beverage, chemical and pharmaceutical industries.

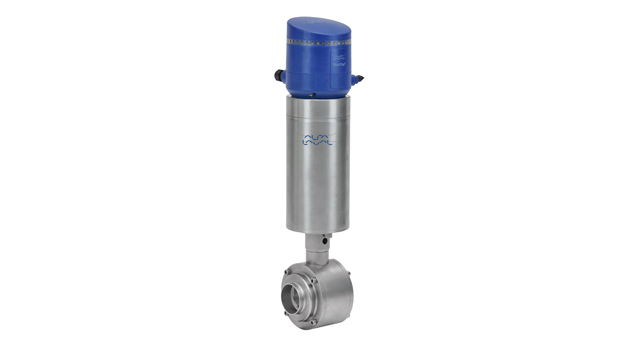

SBV Ball Valve w ThinkTop V50 640x360

Reliable full-flow performance

Alfa Laval sanitary ball valves (SBVs) are full-bore flow valves that provide on/off control with minimal pressure drop. The valve opening has a constant pipeline diameter, which enables fluids to flow freely through the valves when open. Flow restriction is comparable to that of a straight tube. This makes the SBVs suitable for:

  • Handling fluids that are viscous or contain solid, semi-solid or abrasive particles
  • Use wherever pigging of process lines is a major consideration
  • Applications that require gentle product treatment
  • CIP applications

Automated or manual control

For versatility, Alfa Laval SBVs can be supplied for manual or automatic operation.

Manual operation: SBVs feature stainless steel quarter-turn handles to mechanically lock the valves in either open or closed position.

Automatic operation: SBVs use standard maintenance-free pneumatic actuators. Actuated ball valves are delivered as normally closed (NC) valves that are controlled from a remote location by means of compressed air. These, however, can easily be rebuilt to a normally open (NO) configuration. Actuators can be fitted with Alfa Laval ThinkTop valve sensing and control units. Optional inductive proximity sensor and mounting bracket are available.

Compact, simple ball valve design

Easy to build into most any process line, Alfa Laval SBVs feature a straightforward floating ball design, which guarantees a tight seal and permits axial movement while preventing rotation. They are water hammer-safe and completely insensitive to pressure shocks in the pipelines.

Spring-loaded, self-adjusting seal rings provide highly reliable valve stem sealing. SBVs with automated control have inspection holes in the bonnet for easy inspection of the stem seal.

Easy-to-maintain ball valves

The three-piece valve design with few moving parts enables easy access to all valve components, making maintenance quick and easy. Durable PTFE valve seats help prolong service intervals. No special tools required for maintenance.

Sanitary ball valve range

The Alfa Laval sanitary ball valve range consists of two standard valve models.

  • SBV with either manual handle or automated operation for applications that involve high operating pressures up to 16 bar and temperatures up to 150°C, and where the use of pigging systems is required.
  • Tri-Clover® ball valves for applications that require full flow with minimal flow turbulence and pressure drop. An optional encapsulated seat is available for applications where reducing the risk of potential product entrapment is important.

For more information, please refer to Documentation.

Beneficios del producto

  • Rendimiento fiable de flujo completo
  • Diseño compacto y sencillo de la válvula de bola
  • Seguro contra golpes de ariete

Catálogo de productos

Versión en línea de la última edición de "A su alcance"

Encuentre un producto de Alfa Laval

BallValve

Cómo funciona

Construcción

La válvula de bola sanitaria SBV de Alfa Laval consta de un cuerpo de válvula, dos bridas, asientos de válvula de PTFE, bola, unidad de vástago y un mango para operación manual, o un bonete y un actuador neumático para operación automatizada. Para una rápida y fácil inspección y mantenimiento, la válvula se monta y desmonta fácilmente con tornillos de brida soldados.

Principio de funcionamiento

En el interior del cuerpo de la válvula, entre dos bridas y dos asientos de válvula de PTFE, se coloca una bola de precisión con un orificio o abertura.

Opciones

  • Manivela de un cuarto de vuelta para operación manual o actuador neumático para operación automatizada
  • Soporte para el montaje de detectores de proximidad inductivos
  • Unidad de detección y control de válvulas ThinkTop
  • Racores de acuerdo con la norma requerida (ISO o DIN)
  • Asientos de válvulas encapsulados en PTFE
  • Conexiones de limpieza del asiento de la válvula
  • Juntas tóricas en NBR, Q (Silicona), FPM (Viton)
