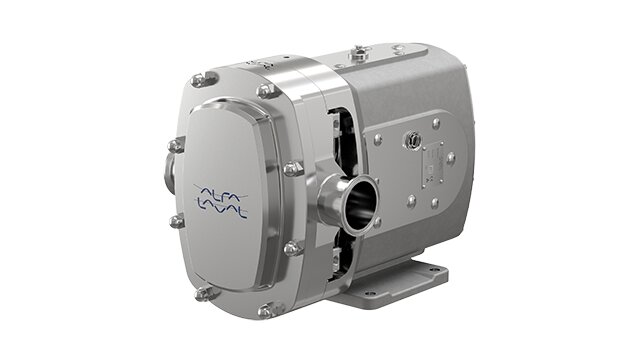

DuraCirc®
La revolucionaria Alfa Laval DuraCirc® es la primera bomba de pistón circunferencial que ofrece el equilibrio perfecto entre durabilidad, confiabilidad, alta eficiencia y desempeño higiénico superior. Combinado con un amplio rango de tasas de flujos y presiones junto con capacidades para un servicio simple, DuraCirc mantiene sus procesos en funcionamiento.
No más compromisos: la mejor oferta de su clase para un rendimiento supremo, una higiene superior y un servicio más sencillo, todo en la misma bomba
- Optimizado para una alta eficiencia volumétrica, lo que garantiza una selección de bomba rentable y una alta calidad del producto
- Diseño higiénico que cumple con los estándares globales, incluidos EHEDG y 3-A
- Operación de confianza a largo plazo gracias a la construcción duradera, robusta y resistente, completamente de acero inoxidable
- Fácil de reparar y mantener con repuestos totalmente intercambiables
- Alta flexibilidad de proceso y costes de capital reducidos debido a la amplia gama de tamaños de modelos, caudales y presiones
El rendimiento de la bomba, el diseño higiénico y la facilidad de servicio son esenciales para los procesos higiénicos. Sin embargo, los fabricantes de las industrias de productos lácteos, alimentos, bebidas, confitería y cuidado personal en el hogar a menudo deben sacrificar un elemento esencial para lograr otro. Hasta ahora. La bomba de pistón circunferencial (CPP) DuraCirc® de Alfa Laval lo ofrece todo: alta eficiencia volumétrica, conformidad con EHEDG y 3-A, y servicio rápido y sencillo.
Para una selección de bombas rentable que ofrece un amplio alcance de aplicación, la gama consta de 13 modelos, capaces de crear caudales de hasta 150 m3/h (660 gpm) y presiones de 40 bar (580 psi).
Simplifique el servicio en términos de complejidad y de tiempo con características fáciles de utilizar que incluyen un sello mecánico único de carga frontal y autoajustable, el uso de un solo lubricante de aceite de larga duración y calzos externos.
Engineered for durability, reliability and efficiency to extend the boundaries of your performance
Supreme Performance
Designed with close pump head clearances, the DuraCirc® circumferential piston pump(CPP) maximizes volumetric efficiency and process yield. Thirteen models offer a wide performance envelope with a flow rate capability up to 150 m3/hr (660 gpm) and operating pressures up to 40 bar (580 psi). This makes optimal pump sizing and selection easy, thereby reducing capital costs and increasing process flexibility.
Based on a robust, reliable design, DuraCirc® features include:
- Advanced port and pump-head geometry, providing a very low NPSHr characteristic. This significantly reduces cavitation risk and maintains pump and media integrity whilst increasing process flexibility in challenging applications
- Long-life, heavy-duty bearings, supporting rigid shafts located in a solid stainless steel gearcase, which reduce shaft movement and allow close pump-head clearances. This minimizes pump-head contact and ensures process uptime
- A modular seal design, which makes seal conversion easy without requiring re-machining or additional flush housings, should the process application change
- An optional retrofit port, the DuraCirc® Uni-Fit, enabling easy, direct replacement of existing circumferential piston pumps from both Alfa Laval and other brands, without requiring pipework modification in existing process systems
Safely meets industry hygienic demands, assuring the integrity of your processes and
the quality of your products
Superior hygiene
The all-stainless-steel DuraCirc® circumferential piston pump is certified to meet global standards for hygienic design, including EHEDG and 3-A. In contrast to many other circumferential piston pump brands, the DuraCirc® provides both excellent cleanability and high volumetric efficiency.
Features that reduce the risk of contamination include:
- Profiled, product-wetted elastomers that are FDA-compliant and have a defined compression, thereby eliminating crevices and dead zones
- A robust gearcase with optimally positioned heavy-duty bearings that support large diameter shafts, which minimize pump-head contact, thereby reducing the risk of media contamination
- An all-stainless steel construction suitable for hygienic washdown, ensuring a cleaner environment
- Long-lasting, FDA-compliant gearbox lubricant
- Optimized seal design with faces fully immersed in the pumped media for higher cleaning efficiency
Innovative design features make maintenance faster and easier, increasing uptime in your operations
Simpler Service
Increase process uptime and make service faster and easier with innovative DuraCirc® design features. Perform standard maintenance procedures quickly and simply, without requiring gearbox disassembly, component re-work, or complex pump re-build procedures. Features include:
- A truly front-loading, self-setting, single mechanical seal for fast, in-situ seal replacement, without having to remove the pump from the process line
- Quick, easy replacement of rotors or rotor case in the unlikely event replacement is required
- Easy-to-access, external shimming outside the rotorcase instead of inside the gearbox
- Fully interchangeable spare parts
- Long-life bearings, offering tens of thousands of hours of operation
- A single, long-life, FDA-approved gearbox lubricant with an extended 3,000-hour change interval
Enhance pump uptime and efficiency with the condition monitoring Clariot
Discover how Alfa Laval’s advanced condition monitoring system Clariot can optimize your pump performance and give you peace of mind. Reduce the risk of unplanned downtime and save costs with real-time monitoring and proactive maintenance.
Cómo funciona
How does the DuraCirc® circumferential piston pump work

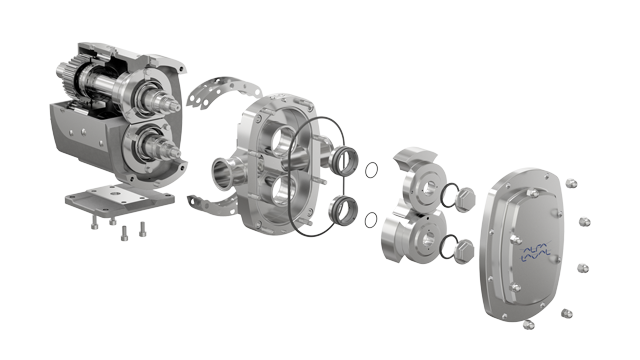

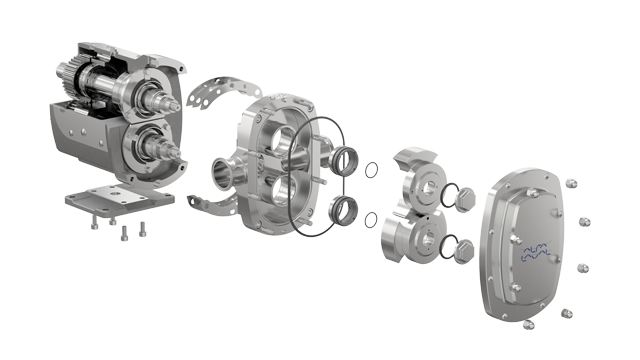

The DuraCirc® construction features two rotors, housed within a pumping chamber, known as a rotorcase, with each rotor located on a shaft held rigidly within a gearcase. The two rotors are timed via timing gears in the gearcase, which along with shimming, ensures no rotor or rotor case contact. Rotor/shaft drive is typicially provided via geared electric motor.
Due to the close internal running clearance within the pumping chamber, the rotation of the rotors continuously generates a partial vacuum in the suction port of the pump as the rotors unmesh. This results in a localized pressure drop, which allows fluid to enter the pump. The fluid is then transported around the channel by the rotor wings; the pressure generated as the rotor wings re-mesh forces the fluid out of the discharge port of the circumferential piston pump.
