Contherm Max

Contherm® Max es un intercambiador de calor de doble pared de alto rendimiento diseñado para el procesamiento continuo de productos cristalinos y de viscosidad baja a media, incluidos aquellos con partículas de gran tamaño. Diseñado por Alfa Laval, este intercambiador de calor de superficie raspada (SSHE) ofrece un rendimiento térmico superior, un mayor rendimiento y unos costes operativos reducidos.

Contherm Max front white background 640x360

Maximice la eficiencia con el intercambiador de calor de doble pared Contherm Max.

  • Añada capacidad: la unidad intercambiadora de calor de doble pared con una gran superficie ofrece el triple de capacidad de producción que los diseños
  • Preserve quality: Gentle treatment is ideal for shear-sensitive products with particulates up to 25 mm in size.
  • Increase efficiency: Single drive motor reduces energy consumption by more than 30%.
  • Easy service: Low rotational speeds reduce lifetime maintenance demands and service costs.
  • Ahorra espacio: el diseño vertical ofrece un tamaño compacto con una unidad totalmente montada para una configuración plug-and-play.

El intercambiador de calor de doble pared Contherm Max® ofrece un rendimiento térmico tres veces superior al de los intercambiadores de calor de superficie raspada de pared simple tradicionales.
Diseñado para ofrecer eficiencia energética, minimiza la caída de presión interna y mantiene bajas velocidades de rotación, lo que garantiza un tratamiento suave del producto y maximiza el rendimiento y la rentabilidad.
Esto se traduce en un menor consumo de energía, menores costes de mantenimiento y un coste total de propiedad significativamente menor.

.

Perfecting pasta production with Contherm Max

When Surgital, a leading Italian food producer, faced rising consumer demand, it turned to the Contherm Max heat exchanger to optimize its pasta production process.

The result? Increased efficiency, enhanced product quality, and improved production capacity.

How the double-wall scraped surface heat exchanger works

In a Contherm® Max double-wall scraped surface heat exchanger, product enters through a bottom tangential inlet and exits from the top. Meanwhile, a heating or cooling medium—such as steam or liquid—flows counter-currently at high velocity for optimal heat transfer.

A rotating scraping assembly with specialized blades continuously removes fouling material from the inner and outer walls, preventing buildup and maintaining consistent thermal performance. The scraping speed can be adjusted based on product type to ensure the best heat transfer efficiency and product quality.

At the end of production, the unit supports easy product recovery and minimal waste. It can also be cleaned using Alfa Laval’s Cleaning-in-Place (CIP) guidelines, ensuring hygienic operation and reduced downtime.

More possibilities with Contherm heat exchangers

The Alfa Laval Contherm® range offers both single and double-wall scraped surface heat exchanger solutions, making it the most versatile option on the market.

We understand that no two customers’ needs are identical, therefor is each unit is fully customized to meet specific application requirements, ensuring higher efficiency, greater capacity, and maximized profitability because we understand the customers' needs.

In fact, today Alfa Laval is the supplier on the market that can offer robust heat transfer with both single and double-wall scraped surface heat exchanger solutions.



Discover more

Contherm product range

Choose the Contherm® Max double-wall heat exchanger

The Contherm® Max heat exchanger enhances production capacity, product quality, and energy efficiency.

As the only double-wall scraped surface heat exchanger of its kind, it sets a new standard for performance and reliability.

Processing viscous products with Contherm Max

The Contherm Max heat exchanger is designed for continuous processing of low to medium viscosity products, but for high capacity. Whether handling thick, gel-like substances or pumpable fluids, it ensures consistent heat transfer and gentle product handling. The capability of Contherm Max creates less back pressure to the process, thanks to its unique geometry and large cross-flow section areas. extending the production uptime thanks to fewer and shorter CIP cycles. That also enables saving CIP costs by reducing water, chemical consumption, and heating energy. Example applications:

Food: Ketchup, mayonnaise, hummus, chocolate spreads, fruit pie fillings, gravies, sauces, peanut butter, pizza sauces, puddings, dressings, and more.

Cosmetics & Pharmaceuticals: Skin lotions, shampoos, mascaras, toothpaste, and more.



Heat-Sensitive products for preventing burn-on and fouling

Heat-sensitive products often cause fouling in traditional Scraped-surface heat exchangers, leading to inefficiency and waste. Alfa Laval’s double-wall heat exchanger design minimizes this issue, ensuring consistent heat transfer and product integrity. Example applications:

Dairy: Cream cheese, yoghurt, sour cream, whey cheese

Food processing: Spreads - like hummus, vegetable and fruit purees, Fruit Sauces, Oat based meals, tomato based sauces, and ketchup

Crystallizing products and applications with phase change challenges

Maintaining the taste, color, and texture of crystallizing or phase-changing products is a major challenge in production. The Contherm Max double-wall heat exchanger ensures controlled heat transfer to preserve product quality. We work with your business to find the optimal Contherm® solution to fit your production.  Example applications:

Low to medium viscous fluids, jams, cream cheese, fruit preparations, fruit purees, vegetable purees, soups, sauces, spreads like hummus, sugar, milk preparations.



Optimized performance for particulate-heavy products

Contherm® heat exchangers are always built to the specifications of the target duty. Whether processing large, small, or mixed particles, the Contherm Max heat exchanger can be tailored to handle diverse product textures. The design ensures even heat distribution and consistent product quality. Example applications:

Food: Hummus, fruit preserves, rice pudding, fruit or vegetable purees, soups, and sauces

Dairy & desserts: Yogurt with fruit, jam, and more.

Reliable processing of sticky and high-adhesion products

Sticky, high-adhesion products can be difficult to process in conventional heat exchangers, leading to clogging and inefficiency. The Contherm Max double-wall heat exchanger prevents buildup while ensuring optimal heat transfer. The complete Contherm® family of scraped surface heat exchangers can support a range of mildly to extremely sticky products, from foods to beauty products. Example applications:

Food & confectionery: Caramel, processed cheese, lecithin, starch-based products.

Cosmetics & pharmaceuticals: Gums, gelatine, mascara, toothpaste.


Happy customers

.

Key products

Servicios




Contherm® Service Offering

Partnering with Alfa Laval for the service of your Contherm® scraped surface heat exchanger will ensure your heat exchanger is always working at top performance.

  • Easy commission and installation
  • Safe start-up
  • No unexpected downtime
  • Reduce total costs of ownership
  • Upgrade your scraped surface heat exchanger to achieve more

Learn more



.

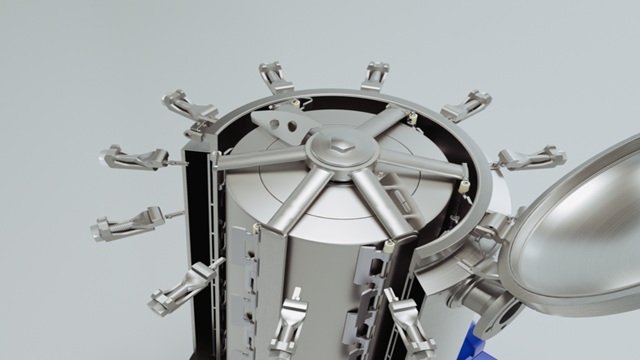

Industrial cylindrical device with clamps and radial arms, hinged lid open, equipment for sample processing or testing
