U-Turn

U-Turn is a liquid separator especially designed for use with plate heat exchangers in ammonia applications. The module – including the separator and plate heat exchanger ensures minimum pressure drop losses and maximum energy efficiency.

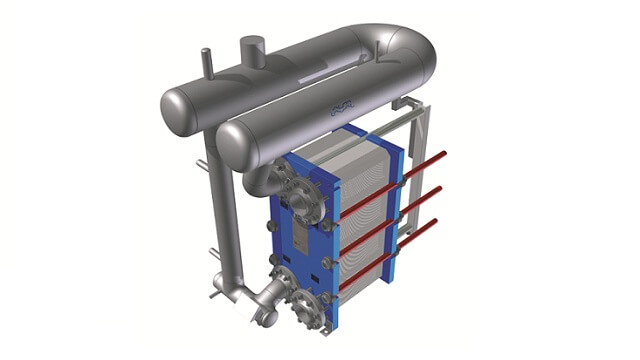

U turn 640x360

Alfa Laval U-Turn is designed to utilize the very best from Alfa Laval’s plate heat exchanger technology. Installed above, the self-contained U-Turn can be easily mounted onto the compatible plate heat exchanger. It can cover ammonia capacities from 200 to 1400 kW at 0°C evaporation temperature and from 50 to 500 kW at -40°C evaporation temperature.

The module provides an effective and compact installation with less vertical rise and smaller overall dimensions than any other solution.

Main design features



  • Compact dimensions
  • Shorter height and length allowing installation onsite without dismantling
  • No additional support is needed, as the U-Turn separator is supported entirely by the plate heat exchanger
  • Easy maintenance, as both sides of the plate heat exchanger are fully accessible.
  • All ammonia connections access the same side which makes installation easy
  • Integrated oil drain
  • Stainless steel ensuring corrosion resistance and no need of surface treatment

Ready to install



The U-Turn module is delivered within short time, due to standardization. It is a fully functional module from one supplier and carries the CE-stamp, as well the approval from PED (Pressure Equipment Directive).

Cómo funciona

El módulo U-Turn abre un nuevo capítulo en la evaporación. Para ver por qué y cómo funciona, lea las características principales y vea nuestro video en la parte inferior de la página.



  • Asegura una separación eficiente - debido al uso de cuatro métodos de separación diferentes
  • La columna de amoniaco es corta, permitiendo aproximaciones térmicas menores y una alta eficiencia del sistema
  • El soporte deslizante permite la expansión térmica, asegurando que no haya tensiones térmicas
  • Recipiente de recogida de aceite integrado para operación manual
  • Separación basada en tamaño de gota 0,15 mm.
  • El margen de separación es un 25% superior al suministrado.
  • La velocidad máxima del gas de separación se limita al 60% de la velocidad de arrastre, evitando el retorno del líquido al flujo de gas.
  • Margen de seguridad extra de por la U en 180º
